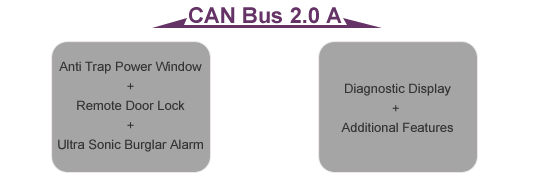

  • Integrates three major security features in one Box
  • Individual features can be added or deleted according to Customer requirements
  • Integration of networking functions (Gateway CAN Bus 2.0 A)
  • Optional: Diagnostic Display to show various state of devices

Advantage of this System

  1. Reduction of the number of control modules in future control architectures
  2. Reduction of System Costs, simpler maintenance and higher flexibility
  3. Integration of networking functions (CAN Bus 2.0 A)
  4. Power Window is equipped with anti-trap function & auto learning features and door condition does not effect its functioning
  5. Diagnostic display system (Optional)
    • Door lock position
    • Device battery level
    • Window Position level
    • Burglar alarm record
  6. Custom client requirements & additional features (Optional)


  • Ultrasonic sensor
  • LED indicator
  • Burglar alarm speaker
  • Remote door control dongle

Working Principal

  • Switch ON the iWDA system by pressing the button on the Remote dongle
  • Windows & Door close by themselves if kept open & the alarm system activates
  • Power window will stop if found an obstacle (anti-trap function)
  • Alarm sound originates if found any disturbances in the car interior
  • Alarm sound can be switched off temporarily with remote dongle button and permanently by opening the door lock through remote door lock

Control Box

  Key Less Remote dongle


Technical Parameter
Radiated Emission
  • IEC CISPR 25
  • GM9114P

  • Radiated Immunity
  • IEC61000-4-21
  • ISO11452-2

  • Transient Immunity
  • ISO7637-2.3
  • ISO7637-3

  • Electrostatic Discharge
  • ISO10605
  • Operation temperature
  • -20 to 85 deg C

  • Operation humidity
  • 15% to 99% RH

  • Storage humidity
  • 5% to 99% RH
